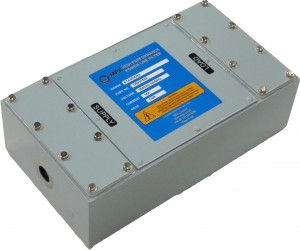

Two line DC power line filters feature a combination of feedthrough capacitors with high permeability toroidal current compensating inductors for high performance filtering in a small rectangular case, designed for mounting on a bulkhead. To achieve the full benefits of this design, it is important that the load current returns through the filter.
Filters are available in:
- DC version,
- AC version (special two line mains supplies where neither line is tied to neutral).
INSERTION LOSS PERFORMANCE

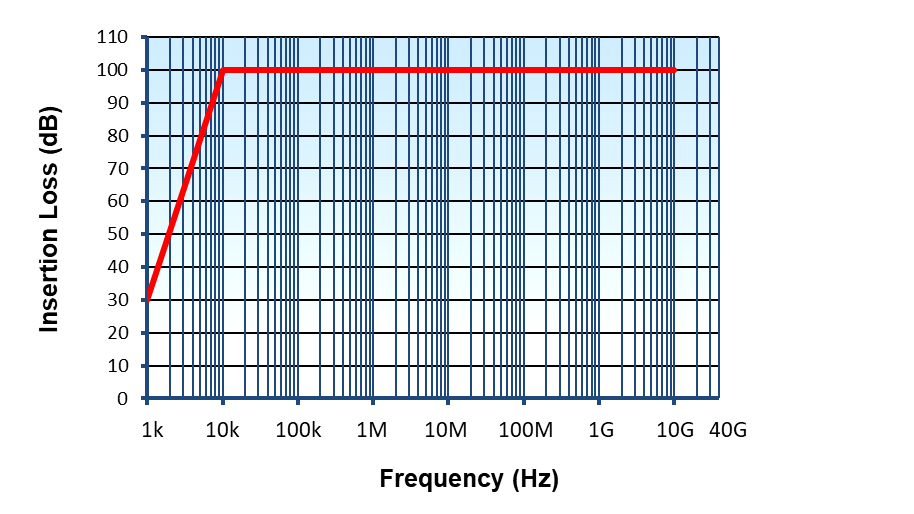

Asymmetric attenuation shown as measured in 50Ω system, at all loading conditions, in accordance with CISPR-17.
DC version
AC version
RANGE of PRODUCTS
| Rated Current [A] | 2 DC lines | 2 AC lines |
| 16 | - | DS26367 |
| 32 | DS23596 | DS26368 |
| 63 | DS23597 | DS26369 |
| 100 | DS23598 | DS26370 |
| 200 | DS23599 | DS26371 |
| 400 | - | DS26372 |
