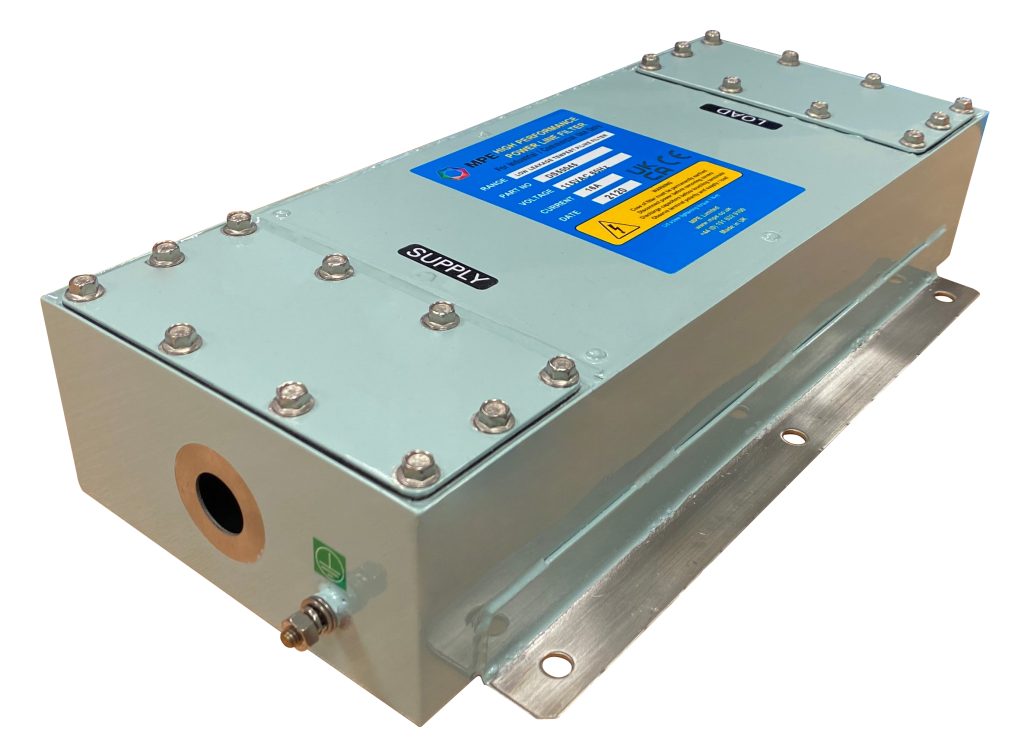

A high performance range of 2 Phase or SP&N, 3 Phase and TP&N Power Line filters with ultra low line to earth leakage current supporting system/equipment compliance with overarching requirements of NATO TEMPEST SDIP-27 and SDIP-29 standards. They provide high attenuation from 100kHz to 10GHz suitable for use in TEMPEST and other secure information handling applications.
INSERTION LOSS PERFORMANCE
Asymmetric attenuation shown as measured in 50Ω system, at all loading conditions, in accordance with CISPR-17. Performance curve meets 100dB attenuation from 10kHz to 40GHz.
RANGE of PRODUCTS
| Rated Current [A] | Part Number – 2 lines, 1 PH + N | Part Number – 3 lines, 2 PH + N | Part Number – 4 lines, 3 PH + N |
| 16 | DS50001 | DS50006 | DS50011 |
| 32 | DS50002 | DS50007 | DS50012 |
| 63 | DS50003 | DS50008 | DS50013 |
| 100 | DS50004 | DS50009 | DS50014 |
| 125 | DS50005 | DS50010 | DS50015 |
All filters consist of a part number, conduit hole position suffix and an optional surge suppressor suffix.
For more details and catalogues please visit MPE’s website or contact Radiotechnika Marketing Sp. z o.o. directly.
MPE’s website:
Ultra Low Leakage Power Filter Range
