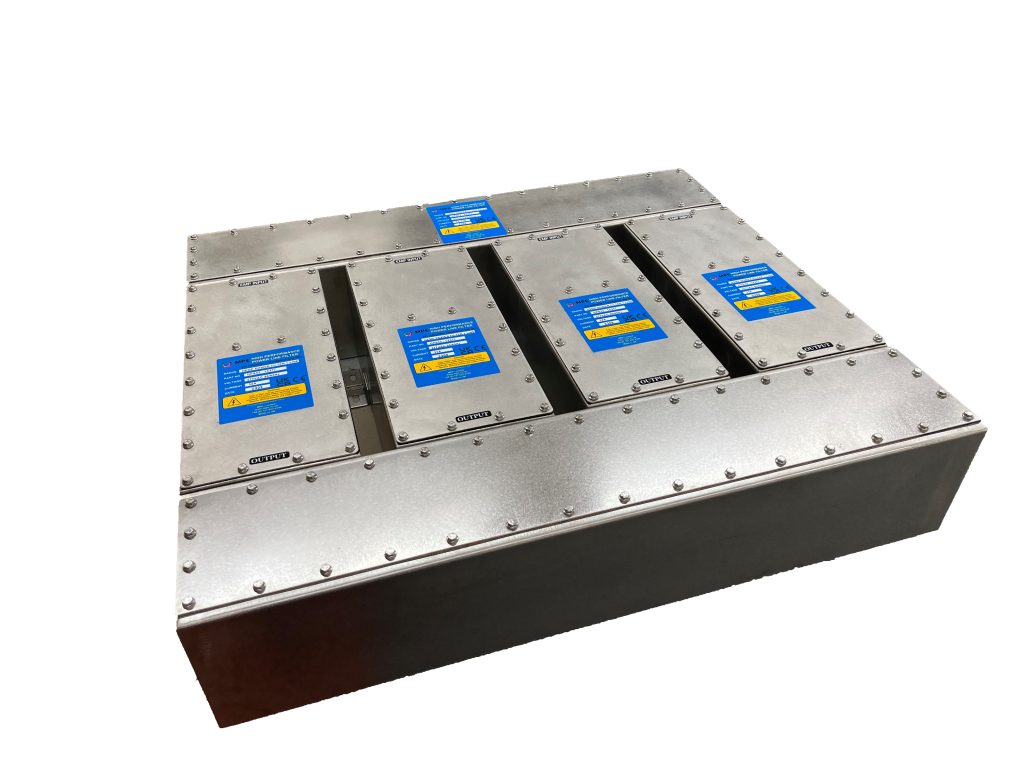

This range of filters is the latest in high-altitude electromagnetic protection (HEMP) for power lines. MPE have designed these filter circuits from the ground up in order to be compliant with the stringent E1 and E2 pulse current injection and shielding effectiveness requirements of the latest United States MIL-STD-188-125-1A protection standard. These high performance filters also protect equipment from the effects of intentional electromagnetic interference (IEMI).
All lines are individually filtered and feature inductive input to offer both good continuous wave electromagnetic compatibility (EMC) performance and superior transient handling performance even on supplies with low source impedance. All lines are fitted with high-energy transient suppressors.
INSERTION LOSS PERFORMANCE
Asymmetric attenuation shown as measured in 50Ω system with or without load, in accordance with MIL-STD-220C, CISPR-17 and BS EN 55017.
RANGE of PRODUCTS
| Rated Current (A) | Part number – 1 line | Part number – 2 lines | Part number –3 lines | Part number – 4 lines |
| 32 | HPS32-1 | HPS32-2 | HPS32-3 | HPS32-4 |
| 63 | HPS63-1 | HPS63-2 | HPS63-3 | HPS63-4 |
| 100 | HPS100-1 | HPS100-2 | HPS100-3 | HPS100-4 |
| 200 | HPS200-1 | HPS200-2 | HPS200-3 | HPS200-4 |
| 250 | HPS250-1 | HPS250-2 | HPS250-3 | HPS250-4 |
| 400 | HPS400-1 | HPS400-2 | HPS400-3 | HPS400-4 |
| 800 | HPS800-1 | HPS800-2 | HPS800-3 | HPS800-4 |
| 1200 | HPS1200-1 | HPS1200-2 | HPS1200-3 | HPS1200-4 |
For more details and catalogues please visit MPE’s website or contact Radiotechnika Marketing Sp. z o.o. directly.
