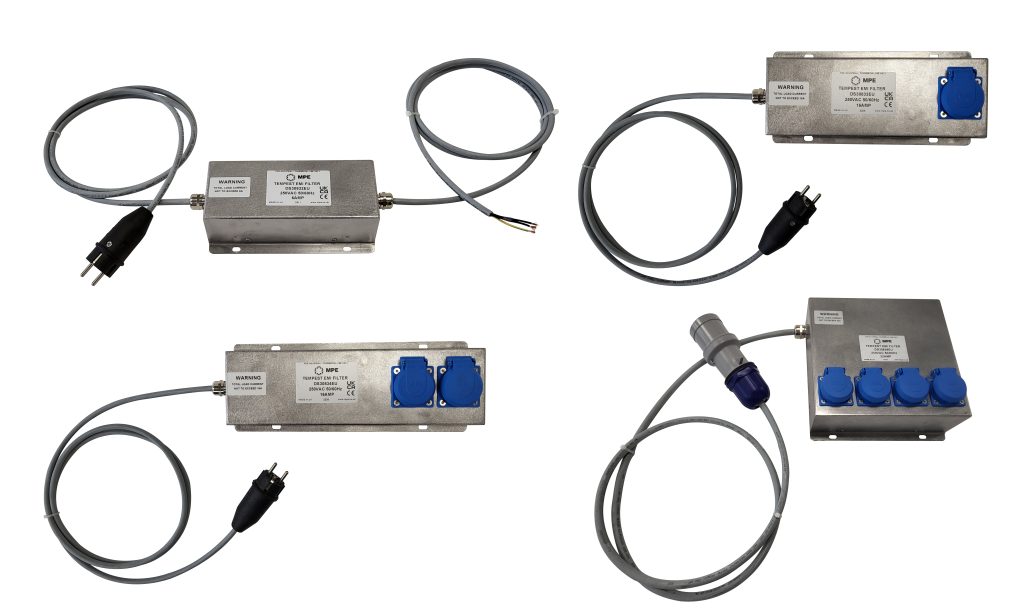

MPE Limited’s range of TEMPEST pluggable filters has been designed for use within TEMPEST applications, where protection compliant to SDIP-29 and equipment hardening to SDIP-27 B/C is required. Utilising ultra reliable self healing capacitors, all units deliver optimum performance across the full frequency range and under all loading conditions. The filter range has been designed for use within unprotected power environments to ensure fitting and electrical installation is as quick and simple as possible.
INSERTION LOSS PERFORMANCE
Asymmetric attenuation shown as measured in 50Ω system, at all loading conditions, in accordance with CISPR-17.
RANGE of PRODUCTS (EU version)
| Rated current [A] | Single Outlet | Dual Outlet | Quad Outlet | In-Line |
| 6 | DS30830EU | DS30831EU | - | DS30832EU |
| 16 | DS30833EU | DS30834EU | DS30835EU | DS30836EU |
| 32 | - | DS30837EU | DS30838EU | DS30839 |
NATO Stock Numbers (NSN)
| Indeks | NSN |
| DS30830EU | 5915-99-353-1169 |
| DS30831EU | 5915-99-156-5222 |
| DS30833EU | 5915-99-938-6086 |
| DS30834EU | 5915-99-343-2290 |
| DS30835EU | 5915-99-577-5337 |
| DS30837EU | 5915-99-584-2808 |
| DS30838EU | 5915-99-219-0951 |
| DS30839 | 5915-99-615-9661 |
For more details and catalogues please visit MPE’s website or contact Radiotechnika Marketing Sp. z o.o. directly.
MPE’s website:
Tempest Pluggable Filters
