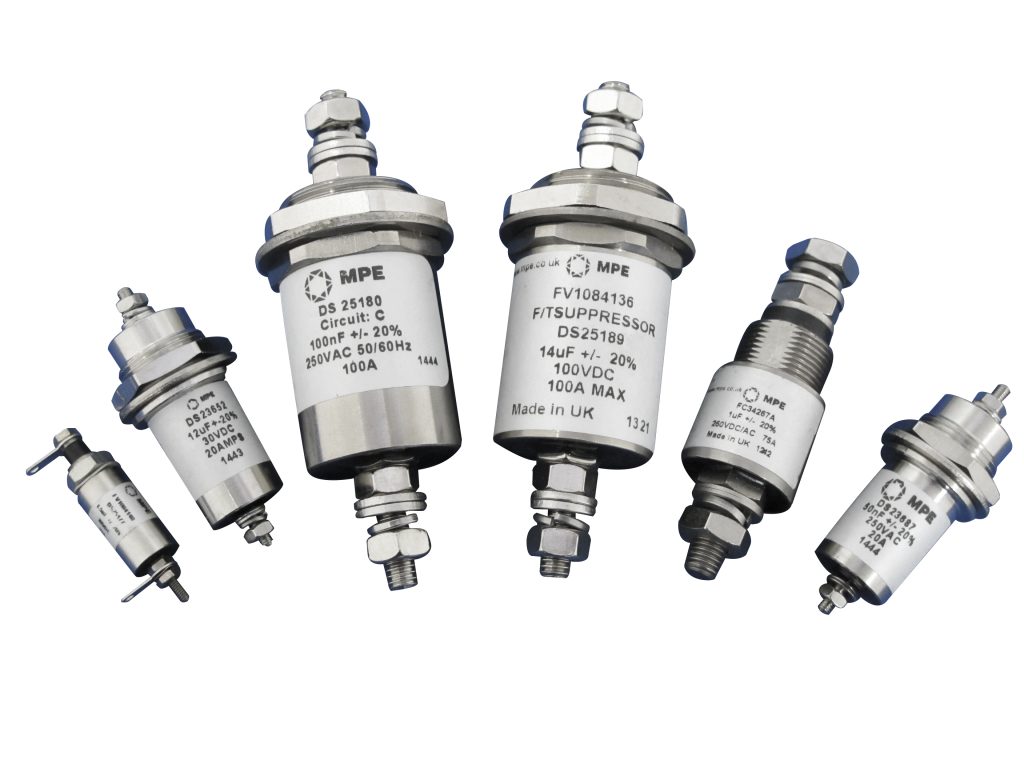

Standard AC and DC feedthrough capacitors are produced in six current series:
10 A, 20 A, 100 A, 200A, 300A, 500A.
RANGE of PRODUCTS
| Part Number | Rated Current [A] | AC/DC | Capacitance Value [µF ±20%] | Rated Voltage [V] |
| DS25172 | 10 | DC | 0,1 | 400 |
| DS25173 | 10 | DC | 0,2 | 250 |
| DS25174 | 10 | DC | 0,3 | 160 |
| DS25175 | 10 | DC | 0,6 | 100 |
| DS25176 | 10 | DC | 0,9 | 63 |
| DS25177 | 10 | DC | 1,5 | 30 |
| DS23646 | 20 | DC | 0,8 | 400 |
| DS23647 | 20 | DC | 1 | 250 |
| DS23648 | 20 | DC | 2 | 160 |
| DS23649 | 20 | DC | 4 | 100 |
| DS23650 | 20 | DC | 5 | 80 |
| DS23651 | 20 | DC | 7 | 63 |
| DS23652 | 20 | DC | 12 | 30 |
| DS25186 | 100 | DC | 2 | 400 |
| DS25187 | 100 | DC | 4 | 250 |
| DS25188 | 100 | DC | 6 | 160 |
| DS25189 | 100 | DC | 14 | 100 |
| DS25190 | 100 | DC | 18 | 80 |
| DS25191 | 100 | DC | 25 | 63 |
| DS25192 | 100 | DC | 40 | 30 |
| DS26534 | 300 | DC | 7 | 100 |
| DS23725 | 10 | AC/DC | 1,3 | 250 V AC 50/60 Hz, 600 V DC |
| DS23726 | 10 | AC/DC | 3,3 | 250 V AC 50/60 Hz, 600 V DC |
| DS23727 | 10 | AC/DC | 4,7 | 250 V AC 50/60 Hz, 600 V DC |
| DS23684 | 20 | AC/DC | 5 | 250 V AC 50/60 Hz, 600 V DC |
| DS23685 | 20 | AC/DC | 10 | 250 V AC 50/60 Hz, 600 V DC |
| DS23686 | 20 | AC/DC | 20 | 250 V AC 50/60 Hz, 600 V DC |
| DS23687 | 20 | AC/DC | 50 | 250 V AC 50/60 Hz, 600 V DC |
| DS23688 | 20 | AC/DC | 80 | 250 V AC 50/60 Hz, 600 V DC |
| DS23689 | 20 | AC/DC | 100 | 250 V AC 50/60 Hz, 600 V DC |
| DS23690 | 20 | AC/DC | 200 | 250 V AC 50/60 Hz, 600 V DC |
| DS23691 | 20 | AC/DC | 300 | 250 V AC 50/60 Hz, 600 V DC |
| DS25840 | 20 | AC/DC | 0,1 | 115 V AC 400 Hz, 250 V AC 50/60 Hz, 600 V DC |
| DS25841 | 20 | AC/DC | 0,2 | 115 V AC 400 Hz, 250 V AC 50/60 Hz, 600 V DC |
| DS25842 | 20 | AC/DC | 0,25 | 115 V AC 400 Hz, 250 V AC 50/60 Hz, 600 V DC |
| DS25180 | 100 | AC/DC | 0,1 | 250 V AC 50/60 Hz, 600 V DC |
| DS25181 | 100 | AC/DC | 0,2 | 250 V AC 50/60 Hz, 600 V DC |
| DS25182 | 100 | AC/DC | 0,25 | 250 V AC 50/60 Hz, 600 V DC |
| DS25183 | 100 | AC/DC | 0,5 | 250 V AC 50/60 Hz, 600 V DC |
| DS25184 | 100 | AC/DC | 1 | 250 V AC 50/60 Hz, 600 V DC |
| DS25844 | 100 | AC/DC | 0,3 | 115 V AC 400 Hz, 250 V AC 50/60 Hz, 600 V DC |
| DS25845 | 100 | AC/DC | 0,5 | 115 V AC 400 Hz, 250 V AC 50/60 Hz, 600 V DC |
| DS25846 | 100 | AC/DC | 1 | 115 V AC 400 Hz, 250 V AC 50/60 Hz, 600 V DC |
| DS25151 | 100 | AC/DC | 5 | 250 V AC 50/60 Hz, 115 V AC 400 Hz , 1000 V DC, 150 V DC |
| DS25152 | 100 | AC/DC | 10 | 250 V AC 50/60 Hz, 115 V AC 400 Hz , 1000 V DC, 150 V DC |
| DS25153 | 100 | AC/DC | 15 | 250 V AC 50/60 Hz, 115 V AC 400 Hz , 1000 V DC, 150 V DC |
| DS25156 | 200 | AC/DC | 5 | 250 V AC 50/60 Hz, 115 V AC 400 Hz , 1000 V DC, 150 V DC |
| DS25157 | 200 | AC/DC | 10 | 250 V AC 50/60 Hz, 115 V AC 400 Hz , 1000 V DC, 150 V DC |
| DS25158 | 200 | AC/DC | 15 | 250 V AC 50/60 Hz, 115 V AC 400 Hz , 1000 V DC, 150 V DC |
| DS25160 | 300 | AC/DC | 5 | 250 V AC 50/60 Hz, 115 V AC 400 Hz , 1000 V DC, 150 V DC |
| DS25161 | 300 | AC/DC | 10 | 250 V AC 50/60 Hz, 115 V AC 400 Hz , 1000 V DC, 150 V DC |
| DS25162 | 300 | AC/DC | 15 | 250 V AC 50/60 Hz, 115 V AC 400 Hz , 1000 V DC, 150 V DC |
| DS25165 | 500 | AC/DC | 5 | 250 V AC 50/60 Hz, 115 V AC 400 Hz , 1000 V DC, 150 V DC |
| DS25166 | 500 | AC/DC | 10 | 250 V AC 50/60 Hz, 115 V AC 400 Hz , 1000 V DC, 150 V DC |
| DS25167 | 500 | AC/DC | 15 | 250 V AC 50/60 Hz, 115 V AC 400 Hz , 1000 V DC, 150 V DC |
For more details and catalogues please visit MPE’s website or contact Radiotechnika Marketing Sp. z o.o. directly.
