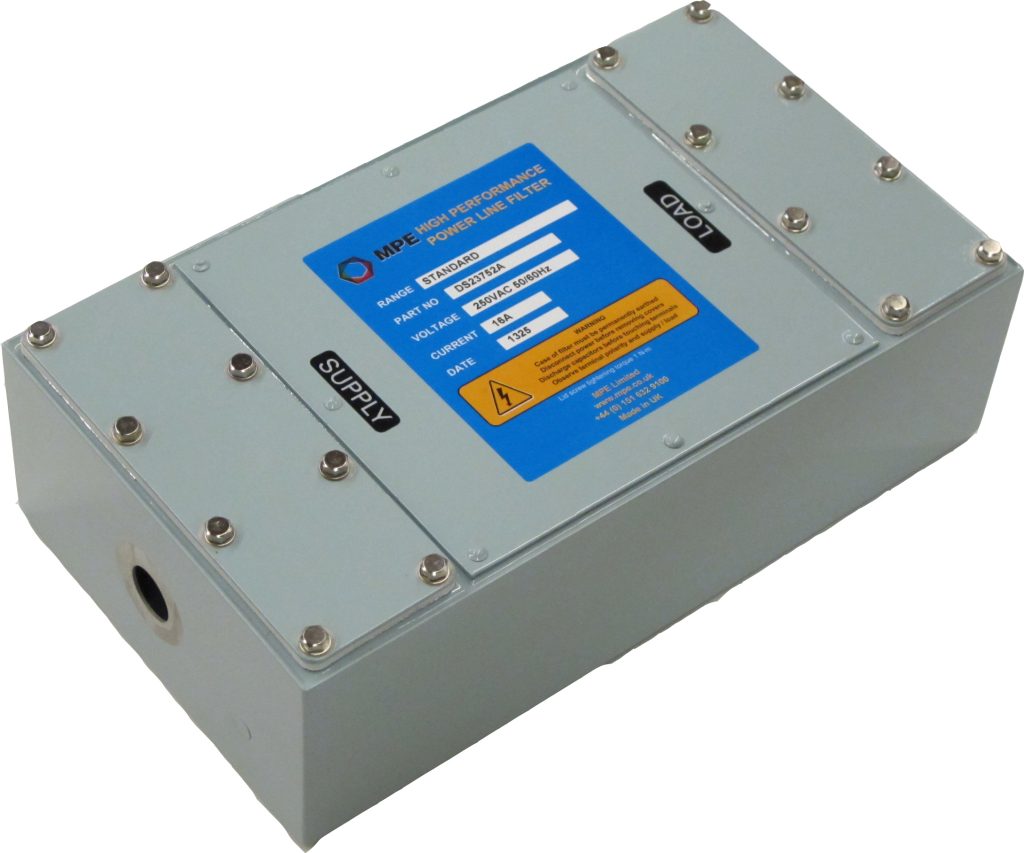

Standard Performance EMI filters for electrical connection to SP&N and TP&N mains distribution systems. The filters offer attenuation against electromagnetic noise present on the power lines between the ranges of 100kHz to 18GHz to 100dB. The supply should have a balanced return current and the case needs a solid low impedance connection to earth potential.
INSERTION LOSS PERFORMANCE
Asymmetric attenuation shown as measured in 50Ω system, at all loading conditions, in accordance with CISPR-17. Performance curve meets 100dB attenuation from 100kHz to 18GHz.
RANGE of PRODUCTS
| Rated Current [A] | Part Number – 2 lines, 1 PH + N | Part Number – 4 lines, 3 PH + N |
| 16 | DS23752 | - |
| 32 | DS23332 | DS23333 |
| 63 | DS23334 | DS23335 |
| 100 | DS23336 | DS23337 |
| 200 | DS23708 | DS23709 |
| 250 | - | DS30929 |
| 400 | DS26050 | DS26051 |
| 800 | - | DS50026A or C |
| 1200 | - | DS50027A or C |
All filters consist of a part number, conduit hole position suffix and an optional surge suppressor suffix.
For more details including NATO Stonk Numbers and catalogues please visit MPE’s website or contact Radiotechnika Marketing Sp. z o.o. directly.
