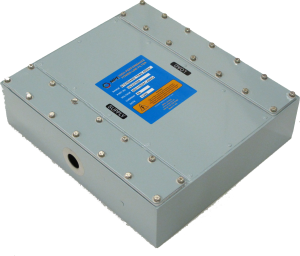

Extended Performance EMI filters for electrical connection to SP&N and TP&N mains distribution systems. The filters offer attenuation against electromagnetic noise present on the power lines between the ranges of 10kHz to 40GHz to 100dB. The supply should have a balanced return current and the case needs a solid low impedance connection to potential earth.
INSERTION LOSS PERFORMANCE
Asymmetric attenuation shown as measured in 50Ω system, at all loading conditions, in accordance with CISPR-17. Performance curve meets 100dB attenuation from 10kHz to 40GHz.
RANGE of PRODUCTS
| Rated Current [A] | Part Number – 2 lines, 1 PH + N | Part Number – 4 lines, 3 PH + N |
| 16 | DS25942 | DS25948 |
| 32 | DS25943 | DS25949 |
| 63 | DS25944 | DS25950 |
| 100 | DS25945 | DS25951 |
| 200 | DS26060 | DS26061 |
| 250 | - | DS50024 |
| 400 | DS26062 | DS26063 |
All filters consist of a part number, conduit hole position suffix and an optional surge suppressor suffix.
For more details and catalogues please visit MPE’s website or contact Radiotechnika Marketing Sp. z o.o. directly.
