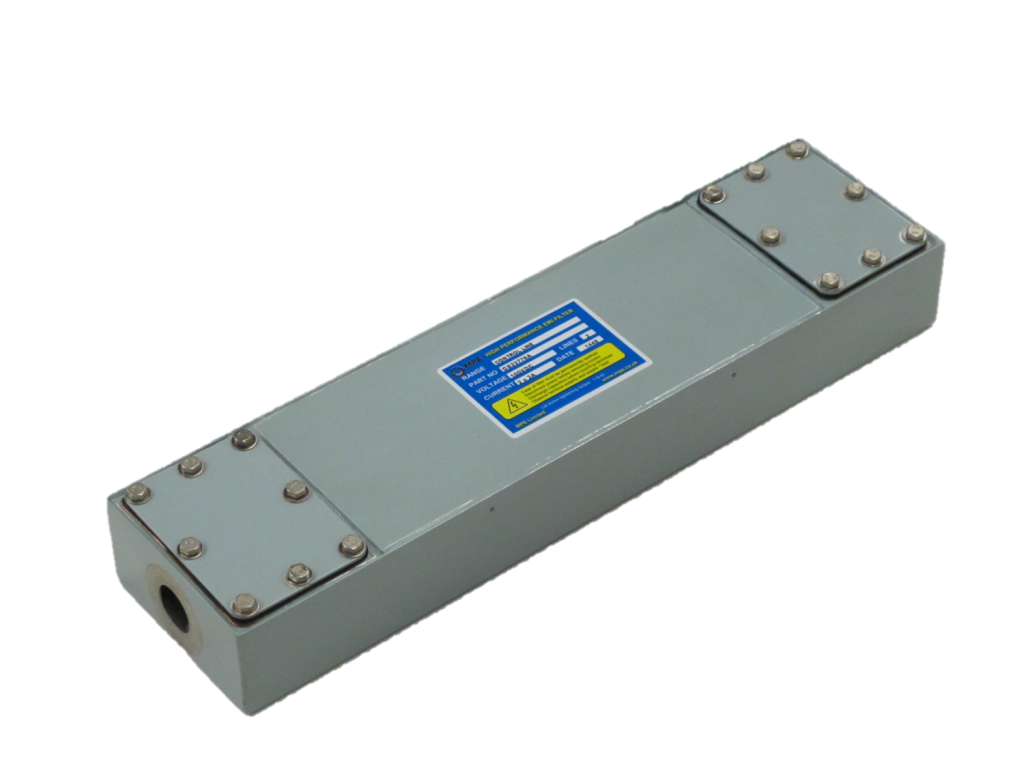

A range of multi-line filters suitable for filtering dc control lines and low current power dc supplies on shielded rooms and general installations. All versions are available with transient suppression if required.

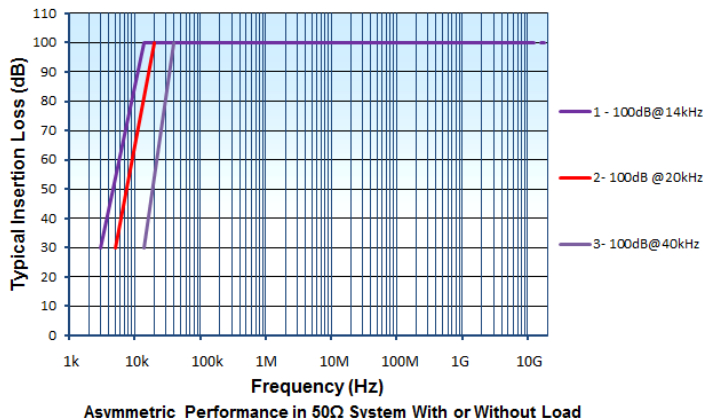

INSERTION LOSS PERFORMANCE
Asymmetric attenuation shown as measured in 50Ω system, at all loading conditions, in accordance with CISPR-17.
RANGE of PRODUCTS
| Rated Current [A] | Part Number – 2 lines, | Part Number – 4 lines, | Part Number – 8 lines, |
| 1 | DS25797 | DS25798 | DS25799 |
| 2 | DS23776 | DS23985 | DS23986 |
| 5 | DS25269 | DS25270 | DS25271 |
| 10 | DS25788 | DS25789 | DS25790 |
All filters consist of a part number, conduit hole position suffix and an optional surge suppressor suffix.
For more details and catalogues please visit MPE’s website or contact Radiotechnika Marketing Sp. z o.o. directly.
MPE’s website:
Multi-Line DC Control Line Filters
