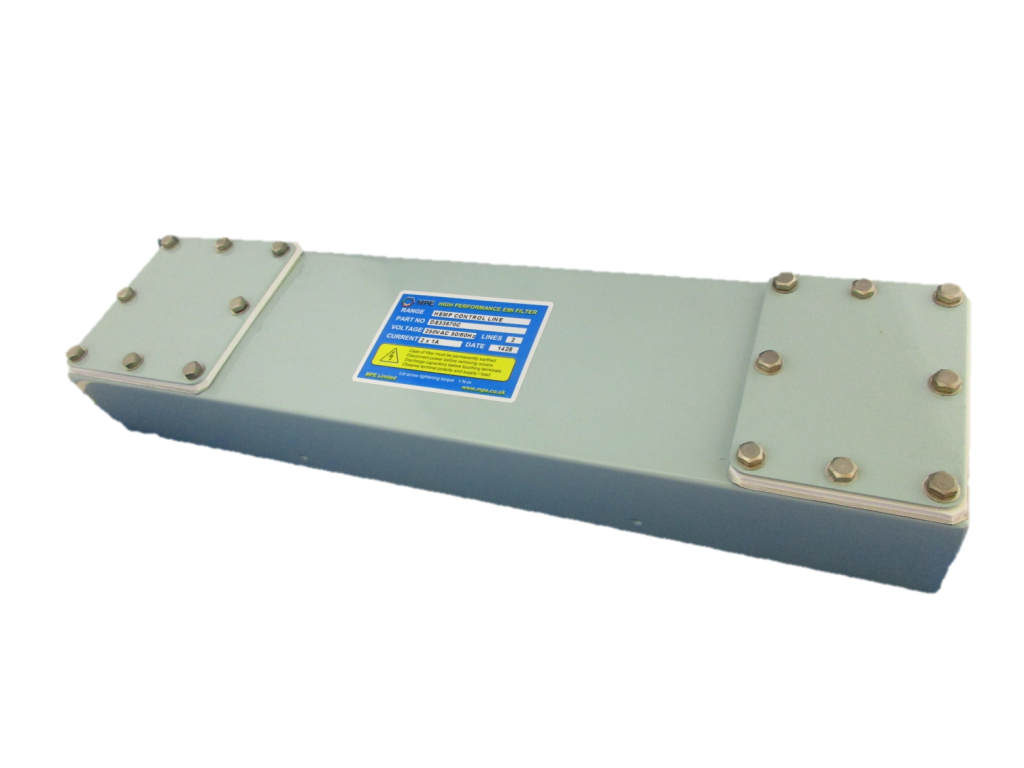

A range of HEMP protection filters for telephone lines for use on HEMP protected installations meeting E1 (short pulse) pci requirements of MIL-STD -188-125-1 & -2. All lines are individually filtered and feature inductive input to offer both good continuous wave EMC performance and superior transient handling performance. All lines feature high-energy varistor transient suppressors at the input end.

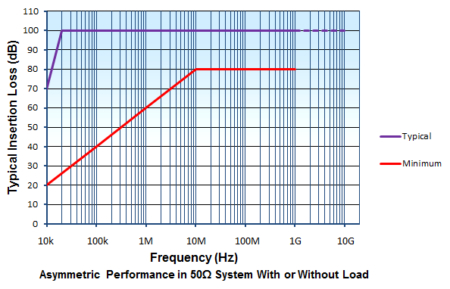

INSERTION LOSS PERFORMANCE
Asymmetric attenuation shown as measured in 50Ω system, at all loading conditions, in accordance with CISPR-17.
RANGE of PRODUCTS
| 2 lines | 4 lines | 8 lines | 32 lines | 100 lines |
| DS33570 | DS33571 | DS33572 | DS33573 | DS33575 |
For more details and catalogues please visit MPE’s website or contact Radiotechnika Marketing Sp. z o.o. directly.
MPE’s website:
HEMP Telephone Line Range
