All lines are individually filtered and feature inductive input to offer both good continuous wave EMC performance and superior transient handling performance. All lines feature high-energy varistor transient suppressors at the input end. The HEMP Control Line Range meets the pci requirements of MIL-STD -188-125-1 & -2.

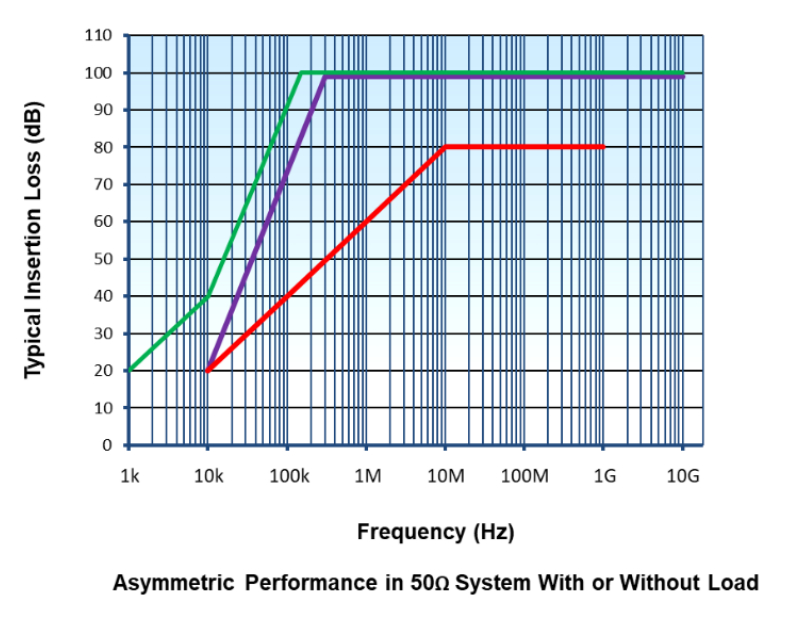

INSERTION LOSS PERFORMANCE
Asymmetric attenuation shown as measured in 50Ω system, at all loading conditions, in accordance with CISPR-17.
RANGE of PRODUCTS
| Rated voltage | Rated current [A] | 2 lines | 4 lines | 8 lines |
| 28 VDC | 1 | DS33590 | DS33591 | DS33592 |
| 28 VDC | 2 | DS33593 | DS33594 | DS33595 |
| 28 VDC | 5 | DS33596 | DS33597 | DS33598 |
| 48 VDC | 1 | DS33800 | DS33801 | DS33802 |
| 48 VDC | 2 | DS33803 | DS33804 | DS33805 |
| 48 VDC | 5 | DS33806 | DS33807 | DS33808 |
| 120 VAC | 1 | DS33690 | DS33691 | DS33692 |
| 120 VAC | 2 | DS33693 | DS33694 | DS33695 |
| 120 VAC | 5 | DS33696 | DS33697 | DS33698 |
| 250 VAC | 1 | DS33670 | DS33671 | DS33672 |
| 250 VAC | 2 | DS33673 | DS33674 | DS33675 |
| 250 VAC | 5 | DS33676 | DS33677 | DS33678 |
For more details and catalogues please visit MPE’s website or contact Radiotechnika Marketing Sp. z o.o. directly.
MPE’s website:

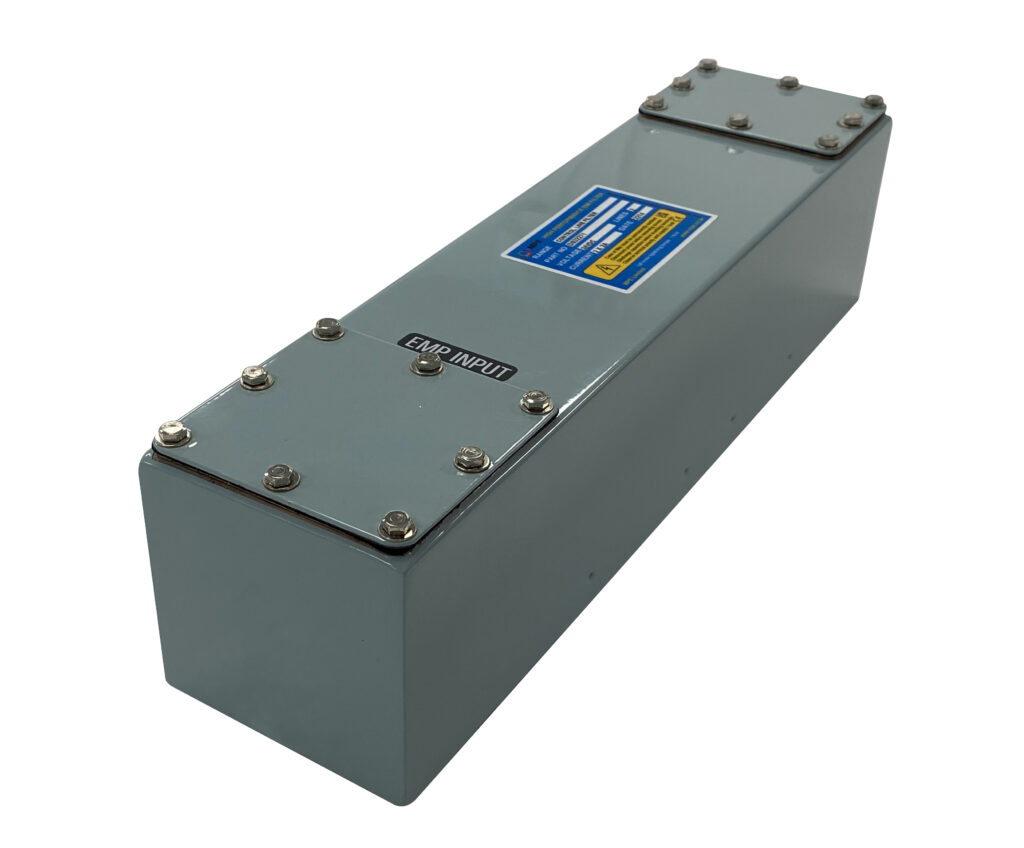

HEMP Control Line Range
