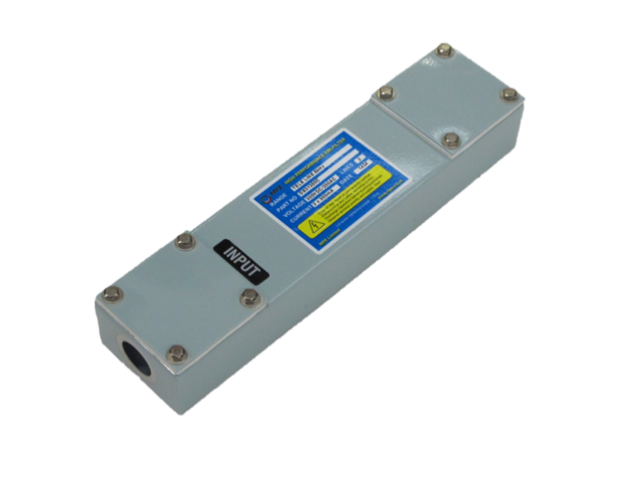

Single line AC and DC power line filters packaged in a rectangular case designed for bulkhead mounting. They offer very high attenuation against electromagnetic noise present on the power lines in a wide frequency range.
INSERTION LOSS PERFORMANCE
Asymmetric attenuation shown as measured in 50Ω system, at all loading conditions, in accordance with CISPR-17.

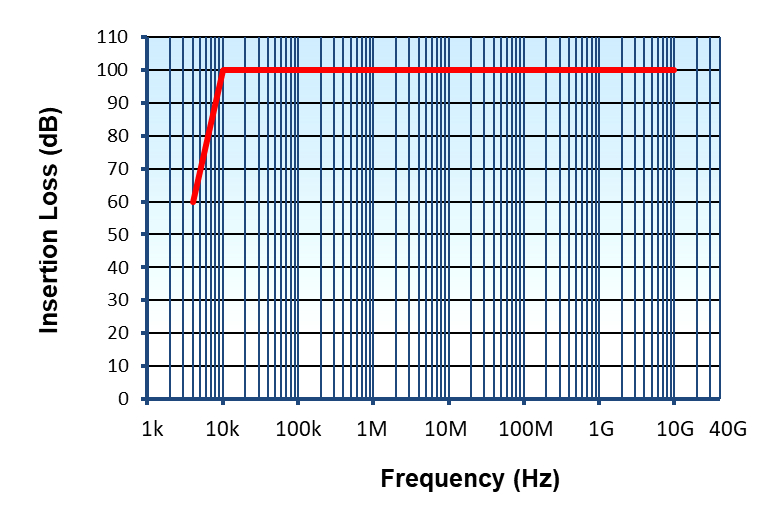

DC filters

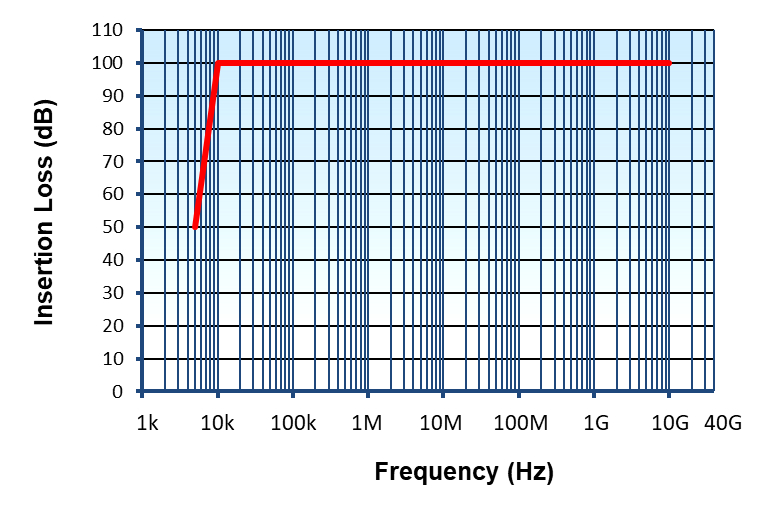

AC filters
RANGE of PRODUCTS
| Rated Current [A] | 1 DC line | 1 AC line |
| 32 | DS23596 | DS26396 |
| 63 | DS23597 | DS26397 |
| 100 | DS23598 | DS26398 |
| 200 | DS23599 | DS26399 |
For more details and catalogues please visit MPE’s website or contact Radiotechnika Marketing Sp. z o.o. directly.
