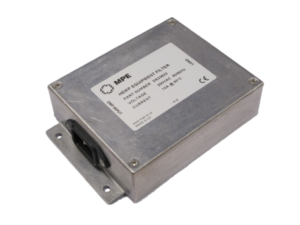

A range of 2 line and 4 line (single & three phase) Power Line HEMP filters meeting the pci requirements of IEC61000-4-24 pulses for severity levels 1 and 2. All lines are individually filtered and feature inductive input to offer both good continuous wave EMC performance and superior transient handling performance even on supplies with low source impedance. The filters provide protection against both E1 and E2 pulses.

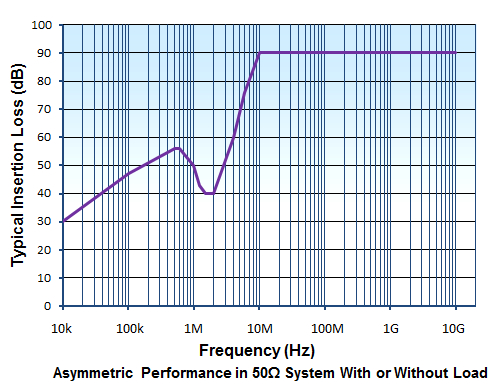

INSERTION LOSS PERFORMANCE
Asymmetric attenuation shown as measured in 50Ω system, at all loading conditions, in accordance with CISPR-17.
For more details and catalogues please visit MPE’s website or contact Radiotechnika Marketing Sp. z o.o. directly.
MPE’s website:
Commercial HEMP Power Line Range
